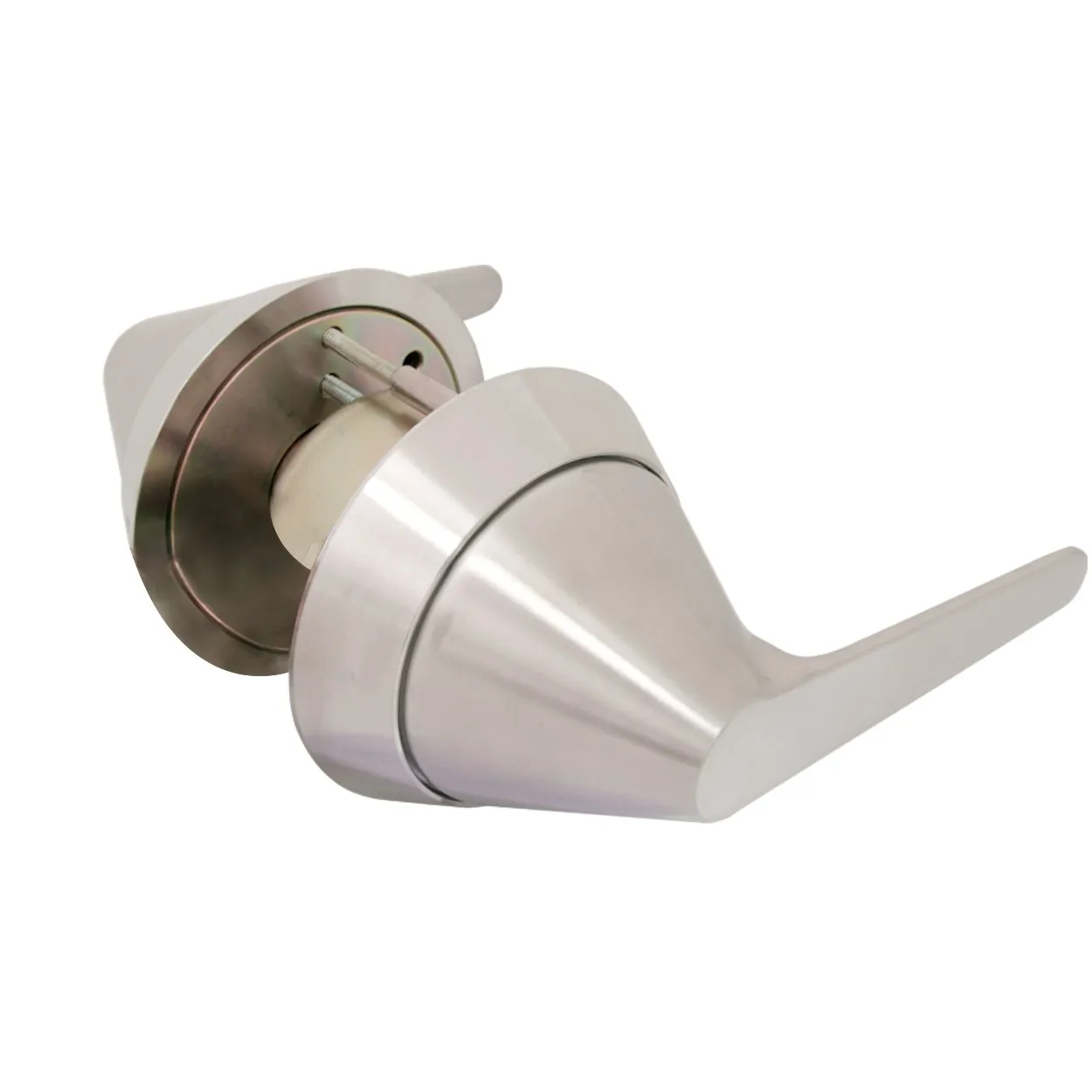

- Designed for Behavioral Health Facilities
- ANSI/BHMA A156.2-2011 Certified Grade 1 Cylindrical Lock with Ligature resistant lever trim
- UL 10C 3-Hour Rated Cylindrical Body
- Satin Stainless Steel Lever Trim
- 2-3/4" Backset, for 1-3/4" Thick Wood, Steel or Fiber Glass Door, Double Dummy Function
Application
For facilities housing patient at risk
Door Thickness
1-3/4" to 2"
Backset
2-3/4"
Handing
Non-handed
Function
Double dummy function, F-72
Finish
US32D, Satin Stainless steel
Rose
Stainless steel, 3-5/8" in diameter
Lever
Stainless steel
Mounting
Through-bolt, tamper resistant mounting screws, for wood, steel or fiber glass door
CODE COMPLIANCE
ANSI/BHMA
Cylindrical body is ANSI/BHMA A156.2-2011 Grade 1 Certified
UL/ULC
Cylindrical body is UL/ULC 10C listed 3-hour rating
BAA
Meets requirements of the Buy American Act
ADA
Meets requirements of the Americans with Disabilities Act
.- Package Dimensions : 11.25 x 8.75 x 6 inches; 8 Pounds
- Date First Available : November 18, 2014
- Manufacturer : TownSteel Inc.
